RCS is a freeware revision control utility. It allows you to manage software projects where several programmers are using the same files. Or you can use it just for unlimited backups. To get RCS, see the links at end of this page.

I have developed some RCS support macros for Vedit text editor. The package contains the following files:

Event macros

These macros perform automatic check-in and check-out functions. Just create a sub-directory called RCS in your working directory, rest is done automatically. When you open a file which has been checked in, it will be automatically checked out, and when you close the file, it will be checked in. You can configure whether the checked in file will be read-only or if it is left editable.

Command macros

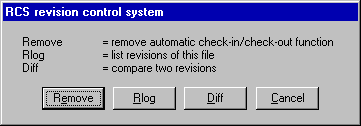

RCS_cmd.vdm displays a dialog box that allows you to perform some basic operations on your RCS files.

• Load/Unload the event macros
• RLOG (displays list of revisions on your file)

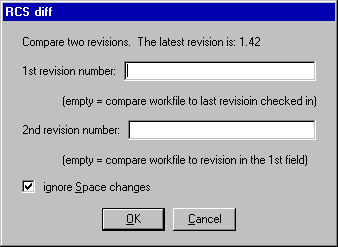

• RCSDIFF (displays differences of two revisions)

I recommend that you put this in your User menu so you can easily start RCS from the menu and perform the commands. The C-User.mnu described in the C-programming page already contains the "RCS" option which calls this macro.

RCS_load.vdm just loads the three RCS event macros (see above). This macro is redundant if you have a call to RCS_cmd.vdm in your user menu. However, if you prefer, you can copy the commands from this macro to your Startup.vdm macro so that the RCS support is always enabled. (You can still disable it later using RCS_command.vdm.)

rdif_gto.vdm: Go to line referred in RCSdiff output. This macro is run when you press Ctrl-F11 while in the RCSdiff output window.

Syntax Highlight

RCSdiff.syn - syntax highlight for RCSdiff. Displays different colors for removed lines, added lines and line number references.

RCSdiff2.syn - alternate syntax highlight for RCSdiff. Displays removed lines in one color, while added lines are displayed with C syntax highligt.

Rlog.syn - syntax highlight for Rlog (revision history) output.

In addition, an instruction file RCS.TXT is included. The package is available as English and Finnish language versions.

Download:   RCStoolE.zip, English   -   V2.0   -   Vedit 6.0   -   4.0 k
Download:   RCStoolF.zip, Finnish   -   V2.0   -   Vedit 6.0   -   4.0 k

The above versions require Vedit 6.0 or later. If you are using Vedit 5.*, you should download the old version of the package:
Download:   v50/RCStl10.zip   -   V1.0   -   Vedit 5.20   -   4.0 k
